Draw order (zorder)

Every artist takes a zorder – higher draws on top, ties keep call order (the previous, only behavior). Useful for pulling a series above something added later, or pinning a reference band underneath everything regardless of when it was drawn.

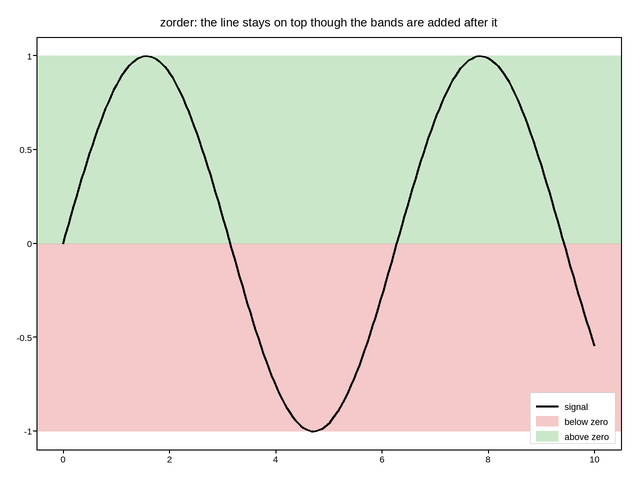

Live figure — pick a tool, then zoom, pan, point-pick or annotate. Nothing is active until a tool is selected.

View this figure’s Vega export ↗ — the raw JSON spec, rendered live by a real Vega engine.

View this figure’s Vega-Lite export ↗ — the raw JSON spec(s), rendered live by a real Vega-Lite engine.

import numpy as np
import plotpress

x = np.linspace(0, 10, 200)
fig, ax = plotpress.subplots()

# The line is plotted first -- without zorder it would sit *under* the two
# bands added after it. Its higher zorder keeps it on top regardless.
ax.plot(x, np.sin(x), color="k", linewidth=2, zorder=2, label="signal")
ax.axhspan(-1, 0, color="#d62728", alpha=0.25, zorder=0, label="below zero")
ax.axhspan(0, 1, color="#2ca02c", alpha=0.25, zorder=0, label="above zero")
ax.set_title("zorder: the line stays on top though the bands are added after it")
ax.legend(loc="lower right")
fig.tight_layout()
