IQ mixer calibration: nulling LO leakage

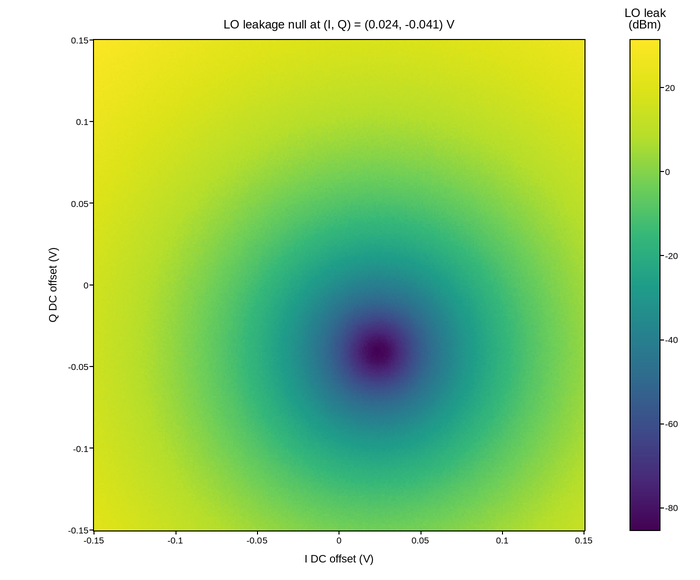

Local-oscillator leakage power at an IQ upconverting mixer’s output, swept over the DC offset voltages fed into its I and Q ports – the first calibration run on every microwave line before any pulse shape or gate timing is even meaningful. An unbalanced mixer leaks a copy of the bare LO tone straight through regardless of what baseband signal is applied; adding a small DC offset to each port cancels it, and the correct pair of offsets is the single point where the leakage drops to the spectrum analyzer’s own noise floor. That floor is why the map is not a clean, unbounded funnel: past a certain depth there is nothing left to null against, so the minimum reads as a flat dark patch rather than a single point, and re-running the calibration lands anywhere inside it.

Live figure — pick a tool, then zoom, pan, point-pick or annotate. Nothing is active until a tool is selected.

View this figure’s Vega export ↗ — the raw JSON spec, rendered live by a real Vega engine.

View this figure’s Vega-Lite export ↗ — the raw JSON spec(s), rendered live by a real Vega-Lite engine.

import numpy as np
import polars as pl
import plotpress

I0, Q0 = 0.024, -0.041         # correct offsets, volts
SLOPE_DB = 46.0                  # dB of leakage suppressed per unit of offset^2
NOISE_FLOOR_DBM = -85.0
rng = np.random.default_rng(1001)

i_offset = np.linspace(-0.15, 0.15, 320)
q_offset = np.linspace(-0.15, 0.15, 300)
I, Q = np.meshgrid(i_offset, q_offset)

residual = (I - I0) ** 2 + (Q - Q0) ** 2
leakage_dbm = NOISE_FLOOR_DBM + SLOPE_DB * np.log10(1.0 + residual / 2e-4)
leakage_dbm += rng.normal(0.0, 0.5, leakage_dbm.shape)

# One row per swept (I offset, Q offset) point -- sorted before the reshape
# below so the pivot back to a grid is correct regardless of row order.
sweep = pl.DataFrame({
    "i_offset_v": I.ravel(),
    "q_offset_v": Q.ravel(),
    "leakage_dbm": leakage_dbm.ravel(),
}).sort(["q_offset_v", "i_offset_v"])

i_axis = sweep["i_offset_v"].unique().sort().to_numpy()
q_axis = sweep["q_offset_v"].unique().sort().to_numpy()
leakage_dbm = sweep["leakage_dbm"].to_numpy().reshape(q_axis.size, i_axis.size)

fig, ax = plotpress.subplots(figsize=(7.0, 5.8))
mesh = ax.pcolormesh(i_axis, q_axis, leakage_dbm, cmap="viridis")
bar = fig.colorbar(mesh, ax=ax)
bar.set_title("LO leak\n(dBm)")
ax.set_aspect("equal")
ax.set_xlabel("I DC offset (V)")
ax.set_ylabel("Q DC offset (V)")
ax.set_title(f"LO leakage null at (I, Q) = ({I0:.3f}, {Q0:.3f}) V")
fig.tight_layout()
