Reload a grouped dashboard, preserving its group boxes

A figure’s plotpress.Figure.group() boxes are template, not data – load_data() alone never returns them, since its per-axes dicts only carry what got plotted, not how the grid around it was organized. That information lives in the "template" entry plotpress.load_data() also returns, next to "axes": plotpress.figure_from_template() reads it back and re-creates the exact same grid and the same group() boxes (title, color, and pad included), so a rebuilt dashboard groups its panels the same way the source did without a single fig.group() call written by hand on the reload side – each panel’s own title comes back the same way, with no set_title() needed either. group_spacing() is the one group setting that does not round-trip – it lives on the Figure itself, not any one group – so it needs calling again on the reload side exactly as it did on the source side, the same as any other reload doesn’t restore Style or tick_params() overrides either.

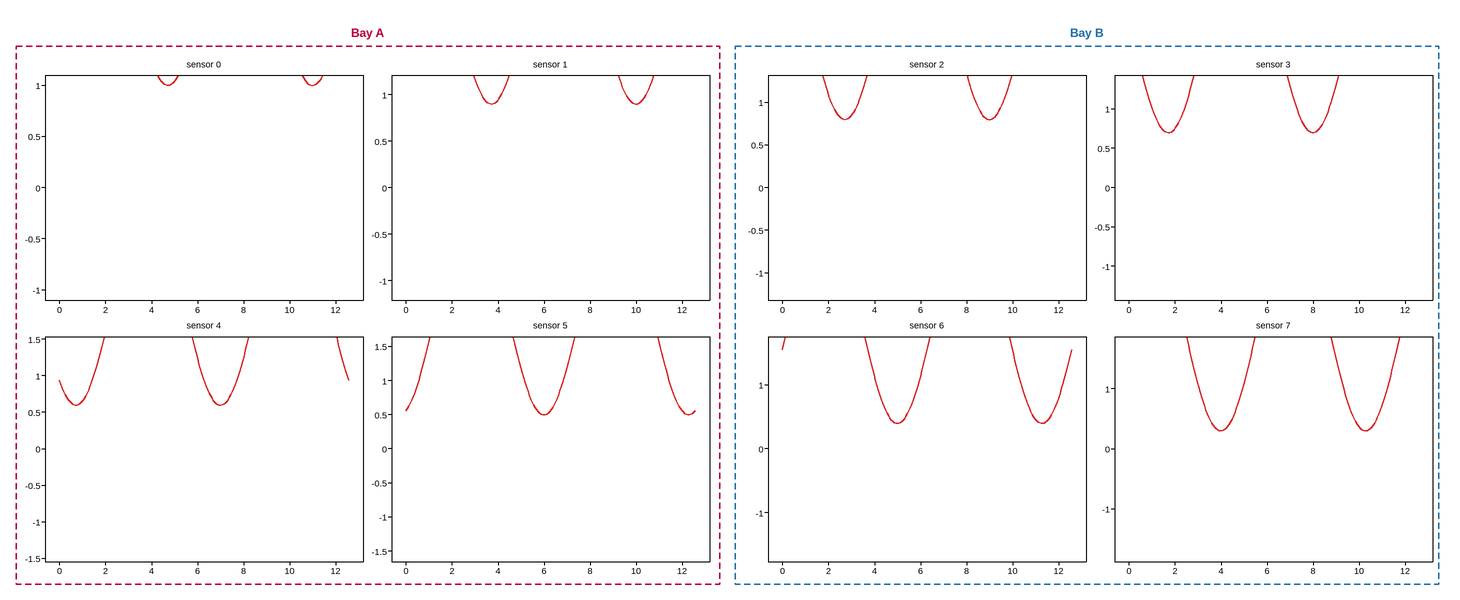

This figure has 8 panels — too many to usefully embed at a fixed size.

Open the full interactive example in a new page to pick a tool, then zoom, pan, point-pick or annotate any panel.

View this figure’s Vega export ↗ — the raw JSON spec, rendered live by a real Vega engine.

View this figure’s Vega-Lite export ↗ — the raw JSON spec(s), rendered live by a real Vega-Lite engine.

import os
import tempfile

import numpy as np
import plotpress


def _build_source_html():
    """A 2x4 sensor dashboard -- the left two columns are one alert
    cluster, the right two are a second -- saved as interactive HTML,
    standing in for a dashboard produced by an earlier, separate run."""
    fig, axes = plotpress.subplots(2, 4, figsize=(14, 6))
    t = np.linspace(0, 4 * np.pi, 200)
    for i, ax in enumerate(np.asarray(axes).ravel()):
        ax.plot(t, np.sin(t + i) * (1 + 0.1 * i), color="C0")
        ax.set_title(f"sensor {i}", fontsize=9)
    fig.group("Bay A", [axes[0, 0], axes[0, 1], axes[1, 0], axes[1, 1]],
             color="#b8003a", pad=(6, 10, 14, 6))
    fig.group("Bay B", [axes[0, 2], axes[0, 3], axes[1, 2], axes[1, 3]],
             color="#1f6fa8", pad=(10, 6, 14, 6))
    # Neither box's title faces this shared column boundary (both are
    # title_position="top", which only reserves room on row boundaries),
    # so it needs its own explicit room the same way any two side-by-side
    # groups would -- see the grouping gallery's own plot_01_row_pairs.
    fig.group_spacing(wspace=30.0)
    fig.tight_layout()
    path = os.path.join(tempfile.gettempdir(), "plotpress_gallery_grouped_dashboard.html")
    fig.save(path, interactive=True)
    return path


source_path = _build_source_html()
data = plotpress.load_data(source_path)
# A bare (non-Report) figure has no report-level title of its own, so it
# falls back to the same "Figure N" label a Report page would show it under.
fig_entry = data["Figure 1"]
axes_data = fig_entry["axes"]    # keyed by each panel's own title

# ---------------------------------------------------------------------------
# Rebuild the same 2x4 grid AND both group boxes from the source figure's
# recorded template, then replot each sensor's recovered trace, offset and
# recolored -- the grouping itself needs no re-declaring.
# ---------------------------------------------------------------------------
fig, axes = plotpress.figure_from_template(fig_entry["template"])
for i, ax in enumerate(np.asarray(axes).ravel()):
    s = axes_data[f"sensor {i}"]["series"][0]
    ax.plot(s["x"], s["y"] + 2.0, color="C3")
# group_spacing() is figure-level state, not part of any one group -- it
# does not round-trip through the saved template and has to be re-applied
# here exactly as it was on the source figure above.
fig.group_spacing(wspace=30.0)
fig.tight_layout()
