CPMG dynamical decoupling: coherence extension vs number of pulses

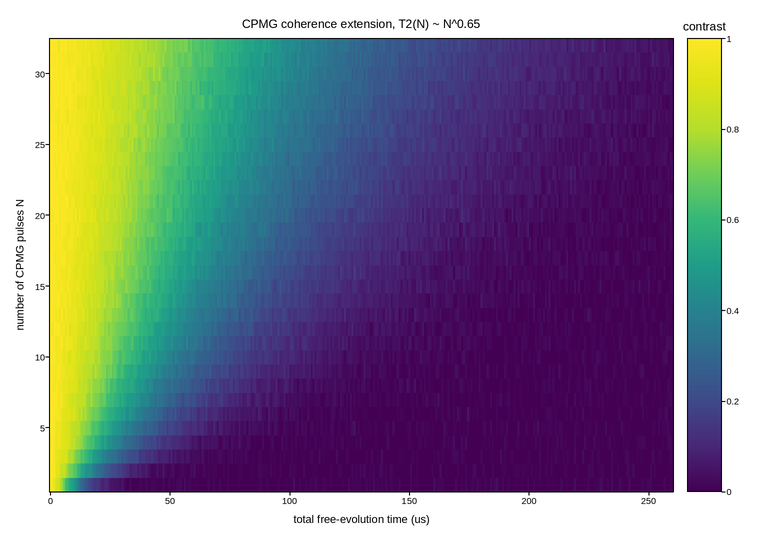

Final-state contrast of a CPMG dynamical-decoupling sequence – N equally spaced refocusing pi pulses inserted into an otherwise free-evolution Ramsey – swept over the total free-evolution time and N itself, the tune-up that picks how many refocusing pulses an idling qubit needs against its own noise environment. Each added pulse narrows the sequence’s filter function around higher frequencies, rejecting more of the slow, 1/f-like noise that limits a bare Ramsey; for that noise spectrum the effective coherence time grows as a power law in N rather than saturating, T2(N) ~ T2_echo N^p. The result is a fan, not a single curve: contrast collapses quickly at low N and survives to far longer times as N increases, and reading where each row crosses a fixed contrast threshold is how many pulses a given idle duration actually needs is decided in practice.

Live figure — pick a tool, then zoom, pan, point-pick or annotate. Nothing is active until a tool is selected.

View this figure’s Vega export ↗ — the raw JSON spec, rendered live by a real Vega engine.

View this figure’s Vega-Lite export ↗ — the raw JSON spec(s), rendered live by a real Vega-Lite engine.

import numpy as np
import polars as pl
import plotpress

T2_ECHO = 12.0                 # microseconds, N=1 (Hahn echo) coherence time
POWER = 0.65                    # T2(N) ~ T2_echo * N^POWER, 1/f-noise scaling
STRETCH = 1.4                   # stretched-exponential exponent
N_MAX = 32
rng = np.random.default_rng(919)

time = np.linspace(0.0, 260.0, 320)      # microseconds, total free evolution
pulses = np.arange(1, N_MAX + 1)
T, N = np.meshgrid(time, pulses)

t2_n = T2_ECHO * N ** POWER
contrast = np.exp(-(T / t2_n) ** STRETCH)
contrast += rng.normal(0.0, 0.015, contrast.shape)
contrast = np.clip(contrast, 0.0, 1.0)

# One row per swept (time, pulses) shot -- sorted before the reshape below
# so the pivot back to a grid is correct regardless of row order.
sweep = pl.DataFrame({
    "time_us": T.ravel(),
    "pulses": N.ravel(),
    "contrast": contrast.ravel(),
}).sort(["pulses", "time_us"])

time_axis = sweep["time_us"].unique().sort().to_numpy()
pulses_axis = sweep["pulses"].unique().sort().to_numpy()
contrast = sweep["contrast"].to_numpy().reshape(pulses_axis.size, time_axis.size)

fig, ax = plotpress.subplots(figsize=(7.6, 5.4))
mesh = ax.pcolormesh(time_axis, pulses_axis, contrast, cmap="viridis", vmin=0.0, vmax=1.0)
bar = fig.colorbar(mesh, ax=ax)
bar.set_title("contrast")
ax.set_xlabel("total free-evolution time (us)")
ax.set_ylabel("number of CPMG pulses N")
ax.set_title(f"CPMG coherence extension, T2(N) ~ N^{POWER:.2f}")
fig.tight_layout()
