Inset axes

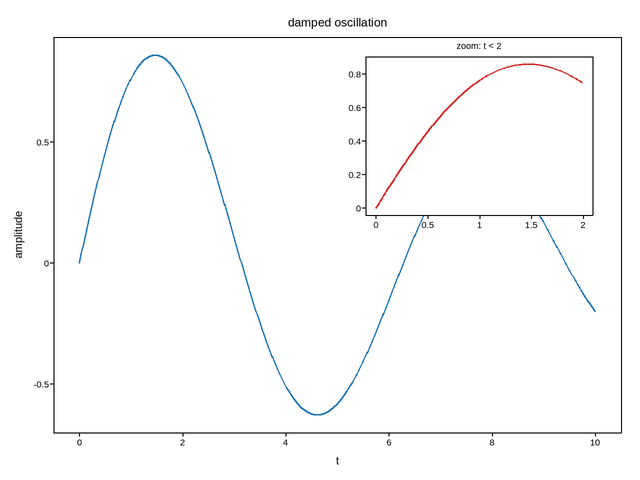

inset_axes places a small axes inside this one, positioned as a fraction of the parent’s own box – handy for a zoomed-in detail view. It tracks the parent through a later tight_layout/subplots_adjust rather than freezing its position at creation time.

Live figure — pick a tool, then zoom, pan, point-pick or annotate. Nothing is active until a tool is selected.

View this figure’s Vega export ↗ — the raw JSON spec, rendered live by a real Vega engine.

View this figure’s Vega-Lite export ↗ — the raw JSON spec(s), rendered live by a real Vega-Lite engine.

import numpy as np
import plotpress

x = np.linspace(0, 10, 1000)
y = np.sin(x) * np.exp(-x / 10)

fig, ax = plotpress.subplots()
ax.plot(x, y)
ax.set_title("damped oscillation")
ax.set_xlabel("t")
ax.set_ylabel("amplitude")

inset = ax.inset_axes([0.55, 0.55, 0.4, 0.4])
early = x <= 2
inset.plot(x[early], y[early], color="#d62728")
inset.set_title("zoom: t < 2", size=9)
fig.tight_layout()
