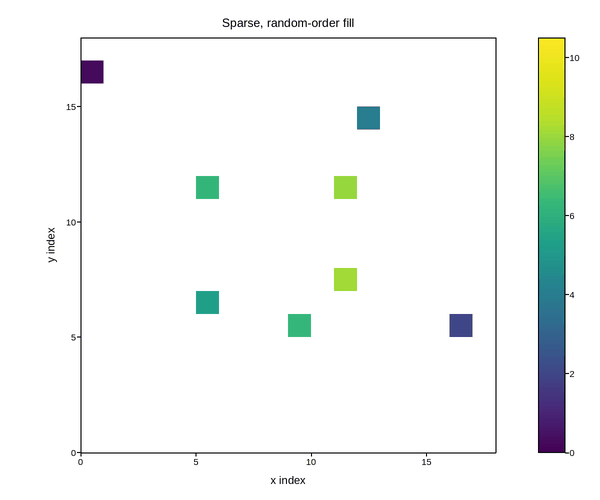

Sparse, randomly-ordered acquisition

A real 2-D sweep – a lock-in scan, a resonance map, anything gathered point by point rather than rendered all at once – rarely fills its grid in raster order, and it’s mostly NaN until it’s done. pcolormesh already treats NaN as “no data” (it just leaves that cell blank), so a mesh with a fixed grid and a fixed colour scale animates the fill-in with nothing more than plain pcolormesh calls and a running array – no special handling for the gaps.

The code below is exactly what you’d write against the real plotpress.qt.LiveArtist: a callback that receives whatever new cells the instrument reported since the last tick and pushes the updated grid to the plot, fed by a loop simulating a sweep controller. Only read_next_cells() is meant to be replaced, with your own instrument call.

import numpy as np
import plotpress


NY, NX = 18, 18
gx = np.arange(NX + 1, dtype=float)
gy = np.arange(NY + 1, dtype=float)
VMIN, VMAX = 0.0, 10.5   # the instrument's own known reading range

fig, ax = plotpress.subplots(figsize=(6, 5))
grid = np.full((NY, NX), np.nan)

# One-time setup: draw the still-empty grid so the axes decorations and
# colorbar are in place before any live updates start.
m0 = ax.pcolormesh(gx, gy, grid, cmap="viridis", vmin=VMIN, vmax=VMAX)
ax.set_aspect("equal")
ax.set_xlabel("x index"); ax.set_ylabel("y index")
ax.set_title("Sparse, random-order fill")
fig.colorbar(m0, ax=ax)
fig.tight_layout()

mesh = LiveArtist(ax, cmap="viridis", vmin=VMIN, vmax=VMAX)


def on_new_cells(cells):
    """Called once per acquisition tick with whatever ``(row, col, value)``
    cells the sweep reported since the last one, in whatever order they
    came back.
    """
    for r, c, v in cells:
        grid[r, c] = v
    mesh.update(gx, gy, grid)
    ax.set_aspect("equal")             # cla() inside update() wiped these
    ax.set_xlabel("x index"); ax.set_ylabel("y index")
    ax.set_title("Sparse, random-order fill")
    fig.tight_layout()


# ---------------------------------------------------------------------------
# Data acquisition -- replace this with your own sweep controller. Every-
# thing above only needs a list of (row, col, value) cells handed to
# on_new_cells() as they're measured.
# ---------------------------------------------------------------------------
rng = np.random.default_rng(7)
rows, cols = np.meshgrid(np.arange(NY), np.arange(NX), indexing="ij")
field = np.clip(
    np.exp(-((rows - 9) ** 2 + (cols - 9) ** 2) / 40.0) * 10.0
    + 0.2 * rng.standard_normal((NY, NX)), 0.0, None)
order = rng.permutation(NY * NX)
CELLS_PER_TICK = 8


def read_next_cells(lo, hi):
    """Stand-in for the instrument reporting whichever cells it measured
    this tick -- sparse and randomly ordered, not a raster scan.
    """
    flats = order[lo:hi]
    rr, cc = np.unravel_index(flats, (NY, NX))
    return list(zip(rr.tolist(), cc.tolist(), field[rr, cc].tolist()))


for lo in range(0, len(order), CELLS_PER_TICK):
    hi = min(lo + CELLS_PER_TICK, len(order))
    on_new_cells(read_next_cells(lo, hi))
