Cross-correlation

Live figure — pick a tool, then zoom, pan, point-pick or annotate. Nothing is active until a tool is selected.

View this figure’s Vega export ↗ — the raw JSON spec, rendered live by a real Vega engine.

View this figure’s Vega-Lite export ↗ — the raw JSON spec(s), rendered live by a real Vega-Lite engine.

import numpy as np
import plotpress

rng = np.random.default_rng(0)
n = 400
x = rng.standard_normal(n)
y = np.roll(x, 15) + 0.4 * rng.standard_normal(n)   # y lags x by 15 samples

fig, ax = plotpress.subplots()
ax.xcorr(x, y, maxlags=40, color="C2")

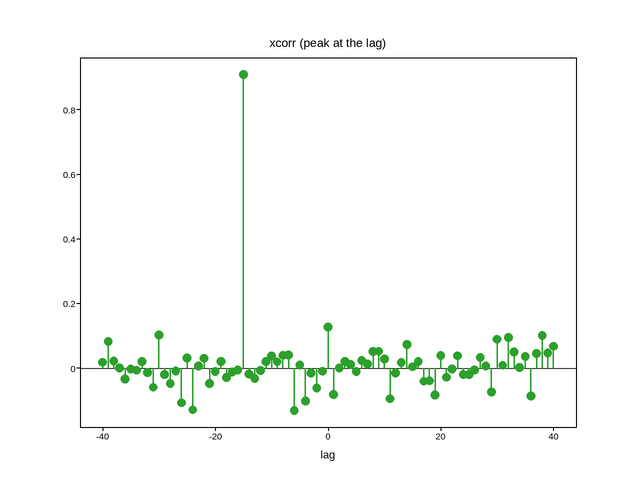

ax.set_title("xcorr (peak at the lag)"); ax.set_xlabel("lag")
